HPP – Cylinder Rings Design Assessment and High Performance Pistons

Your solution to maximize uptime and overcome current lifetime limits

Traditionally, pistons for reciprocating compressors have been constructed following general principles. Unfortunately, due to frequent cylinder ring failures, this straightforward solution frequently does not produce reliable compressor performance. Piston rings slide against the cylinder wall after fitting into the grooves of the piston. In typical use, the piston ring's outer surface deteriorates due to contact with the cylinder liner. The ring features a gap around its diameter to allow for wear and facilitate replacement. In order to maintain contact with the cylinder wall, the ring's radial wear extends with time, which causes a gap to form and a gas leak to occur. Lower capacity, decreased overall compressor performance, and unforeseen shutdowns are the consequences. HOERBIGER has created an engineering solution to enhance gas leakage performance, boost uptime, and assure longer lifespan.

Go with the flow

First things first

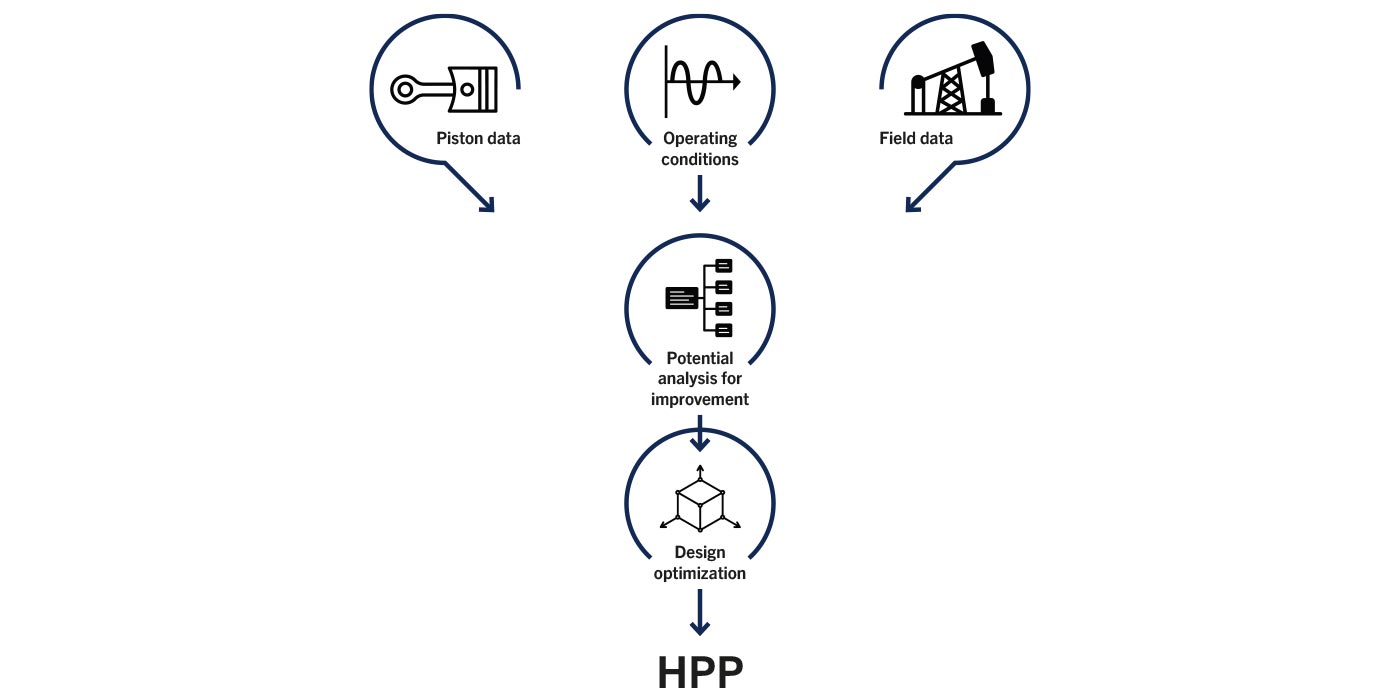

HOERBIGER’s Cylinder Ring Design Assessment uses advanced modeling to design a better piston with the optimal type, number, and arrangement of cylinder rings. The result is controlled leakage, improved reliability, less unplanned downtime, and increased efficiency. The first steps in a Cylinder Ring Design Assessment are to collect compressor, piston, and field data as well as operating conditions. It is necessary to record the existing piston design and cylinder ring arrangement, and to measure gas temperatures and blow-by. This is followed by a finite-element analysis to model the gas leakage path in absolute detail. The modeling works for every type of piston: single-piece, two-piece, or three-piece; aluminum, cast iron, nodular iron, or steel; Supernuts® or conventional nuts.

Get your High Performance Piston

With a detailed understanding of the current situation, it is now possible to design and build a new piston with the optimal number, type and arrangement of cylinder rings and clearances to minimize blow-by and maximize ring life. We call this a HOERBIGER High Performance Piston, and we’re not exaggerating. This is a radical new approach to cylinder sealing, and you can expect run times to increase typically by a factor of 2.5 before ring replacement is needed and decrease your fugitive emissions by 79%.

This new piston configuration method boosts capacity and dramatically improves process reliability. The result is improved product quality, energy savings, increased uptime, longer runtimes, better performance, and longer compressor life. The investment has therefore quickly paid for itself.

Benefits at a glance

Energy savings and lower emission costs (in combination with electronic capacity control system).

Feature

Optimized piston layout

Advantage

Improved end-product quality.

Feature

Optimized piston layout

Advantage

Up to 20 % runtime increase for rider bands and piston rings.

Feature

Optimized piston layout

Advantage

Up to 300 % lifetime increase for cylinder rings, which results in a sustainable production through the product use over the entire product life cycle and at the same time less waste.

Feature

Calculation of cylinder ring arrangement and implementation

Advantage

Savings in energy and CO₂ emission costs, and at the same time performance increase (+ 5 %).

Features

Minimized blow-by

Advantage

Improved uptime and less air pollution due to long downtimes.

Feature

All cylinder rings achieve the same lifetime

Advantage

Production increase, fewer breakdowns and fewer wear parts.

Feature

Calculated blow-by and discharge temperatures

Advantage

Cylinder Rings Design Assessment helped us achieve reduced power consumption and increased lifetime which saved energy and emissions costs and makes less waste.

„

Engineer, US
