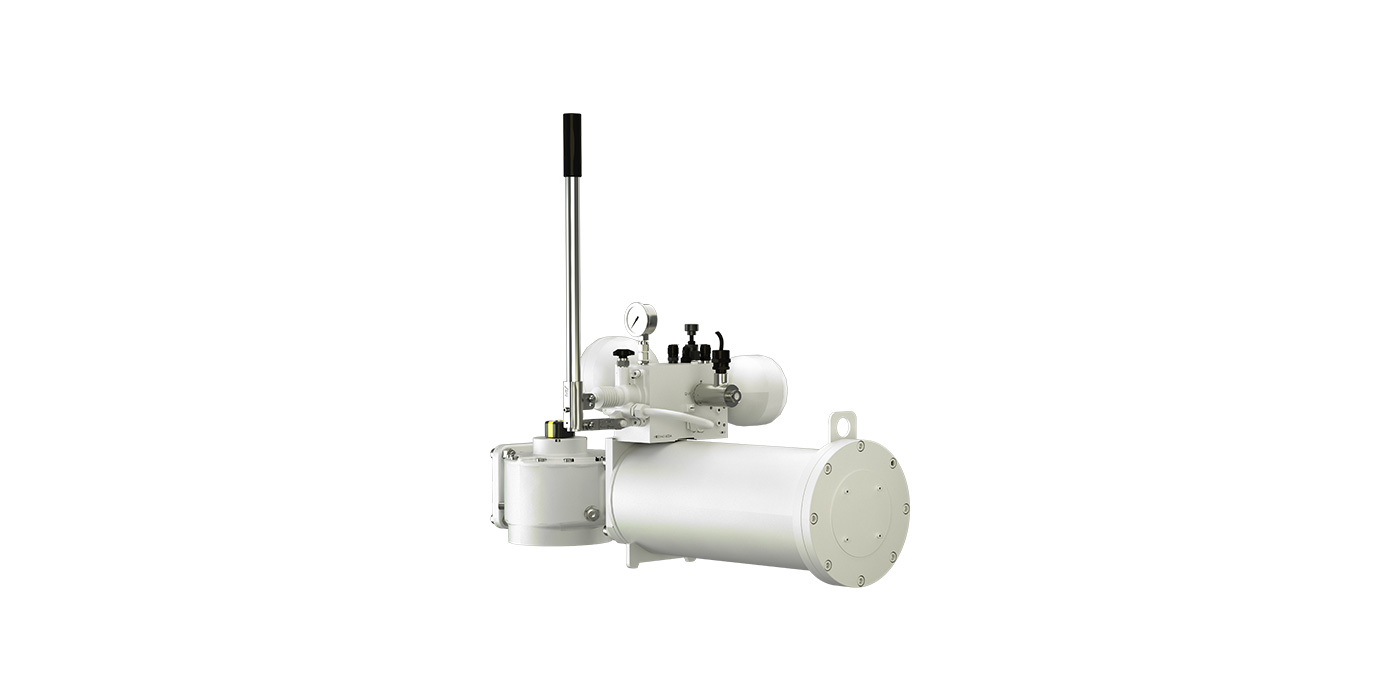

TriVAX Basic is a manual operated actuator with controlled spring return function. The spring return function is possible to be released by solenoid- and/or pilot valves. The closed and precharged hydraulic system allows to install the actuator in each mounting position and leads to long maintenance periods, which safe costs and time. TriVAX Basic is available also with linear motion.
- Torque:
- 500 – 70000 Nm Spring ending torque
- Ambient temperature:
- -30 / +70° C – special execution for low temp. -60°C available
- Voltages for solenoid valves:
- selectable (limited by solenoid valve maker)
- Certificates:
- ATEX / IEC EX / CSA / CCC

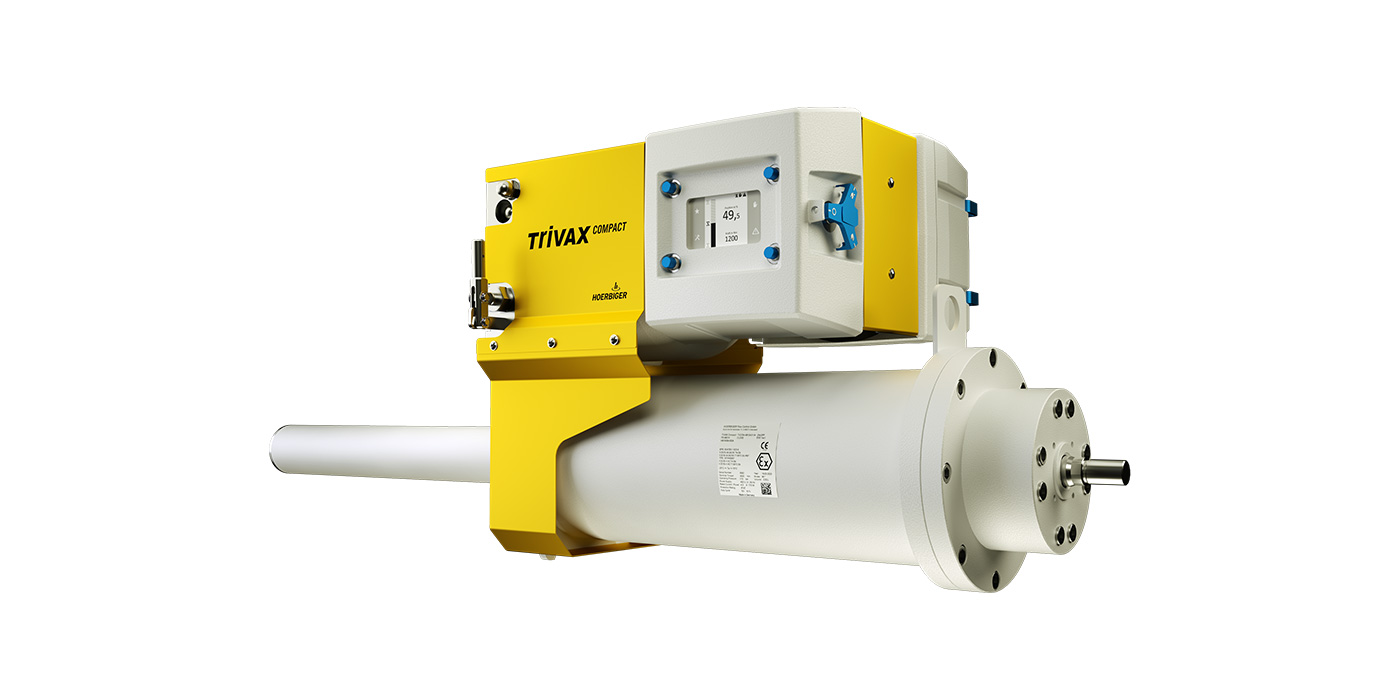

TriVAX Compact with it’s closed, precharged and piping free hydraulic system can be installed easily in any mounting position. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Compact is available also with quarter turn motion.
- Force:
- 4 – 16 kN spring ending force
- Mechanical stroke length:
- 150 / 300 mm
- Ambient temperature:
- -30 / +70° C – special execution for low temp. -60°C available
- Voltages: 24 V DC, 1ph:
- 110-140V / 230V – 50/60Hz
- Voltages: 24 V DC, 3ph:
- 230V / 400V / 480V – 50/60Hz
- Certificates:
- ATEX / SIL / IEC EX / CSA / CCC

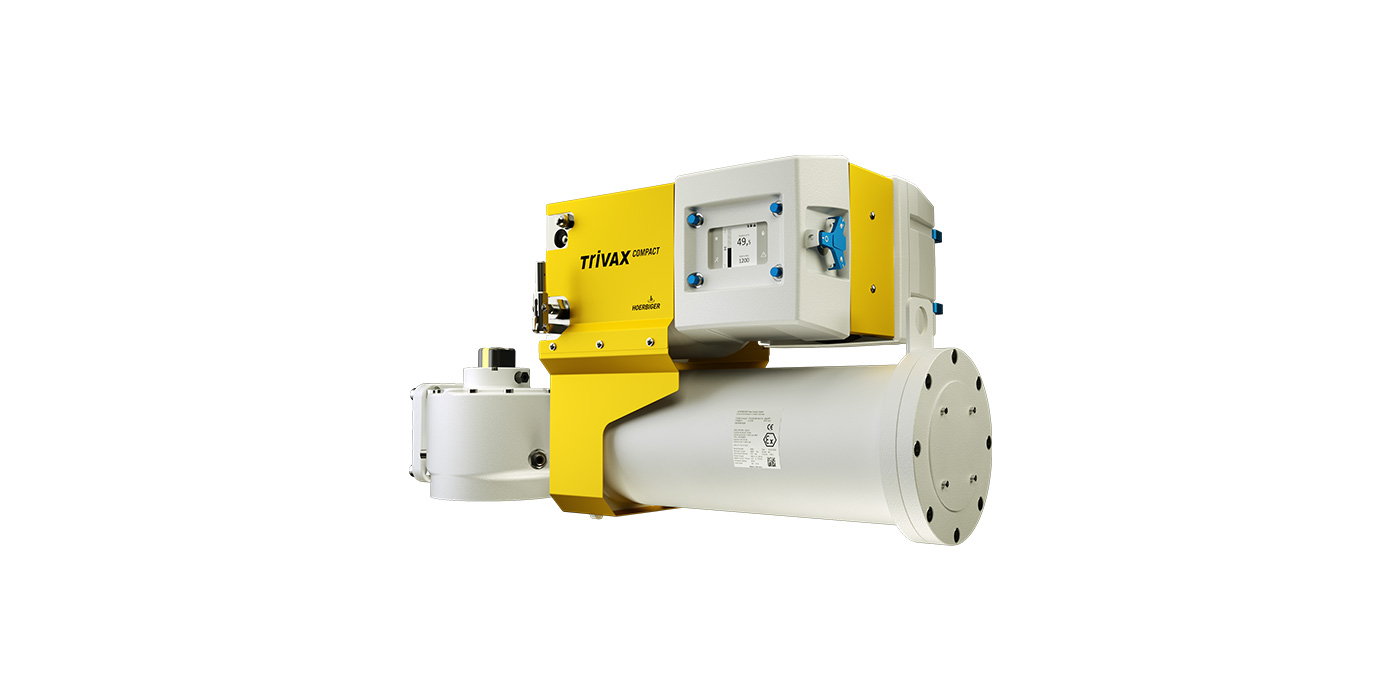

TriVAX Compact with it’s closed, precharged and piping free hydraulic system can be installed easily in any mounting position. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Compact is available also with linear motion.
- Torque:
- 500 – 6000 Nm - Spring ending torque
- Ambient temperature:
- -30 / +70° C – special execution for low temp. -60°C available
- Voltages: 24 V DC, 1ph:
- 110-140V / 230V – 50/60Hz
- Voltages: 24 V DC, 3ph:
- 230V / 400V / 480V – 50/60Hz
- Certificates:
- ATEX / SIL / IEC EX / CSA / CCC
TriVAX Flex can be configured individually. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Flex is available also with linear motion.
- Torque:
- 500 – 600000 Nm
- Ambient temperature:
- -30 / +70° C – special execution for low temp. -60°C available
- Voltages: 24 V DC, 1ph:
- 230V – 50/60Hz
- Voltages: 24 V DC, 3ph:
- 400V / 480V – 50/60Hz
- Certificates:
- ATEX / IEC EX

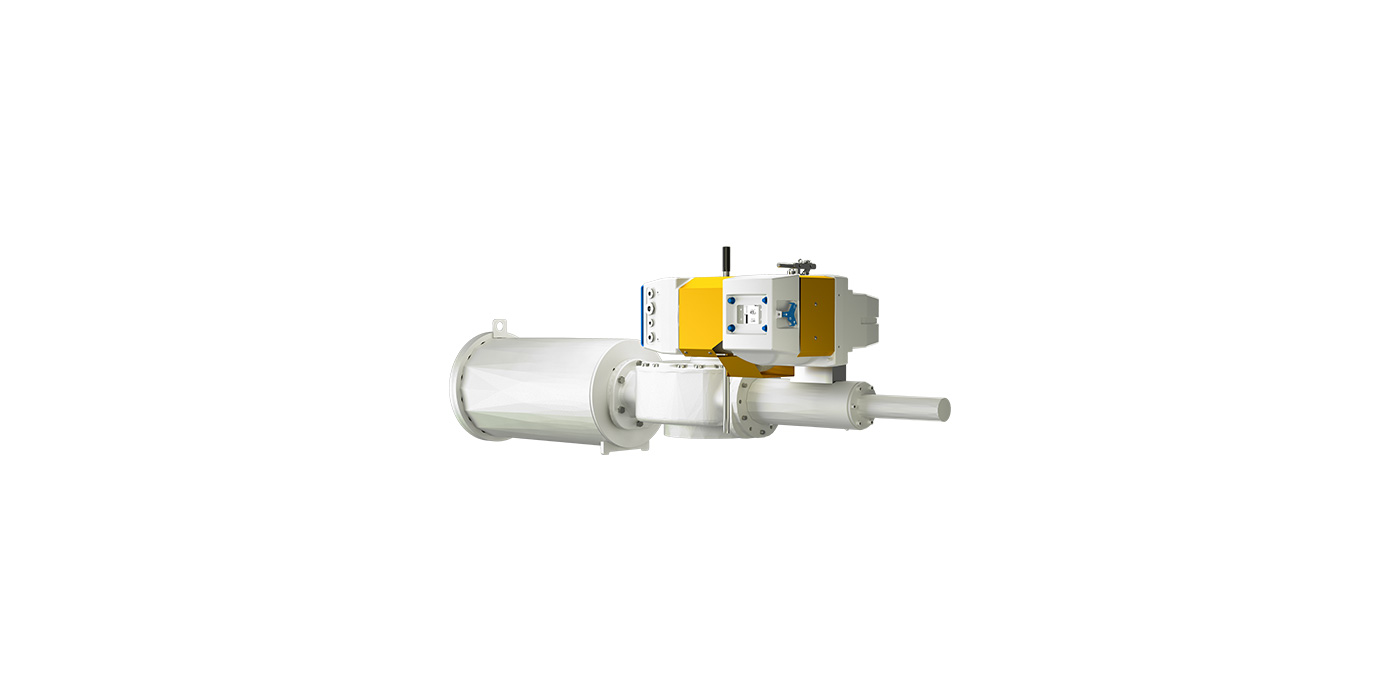

TriVAX Plus II with it’s closed, precharged and piping free hydraulic system can be installed easily in any mounting position. The smart control unit with intuitive operability provides a fast start-up and a reliable and easy operation. Long maintenance periods safes costs and time. TriVAX Plus II is available also with linear motion.
- Torque:
- 6000 – 70000 Nm Spring ending torque
- Ambient temperature:
- -30 / +70° C – special execution for low temp. -60°C available
- Voltages: 24 V DC, 1ph:
- 230V – 50/60Hz
- Voltages: 24 V DC, 3ph:
- 400V / 480V – 50/60Hz
- Certificates:
- ATEX / SIL / IEC EX / CSA / CCC

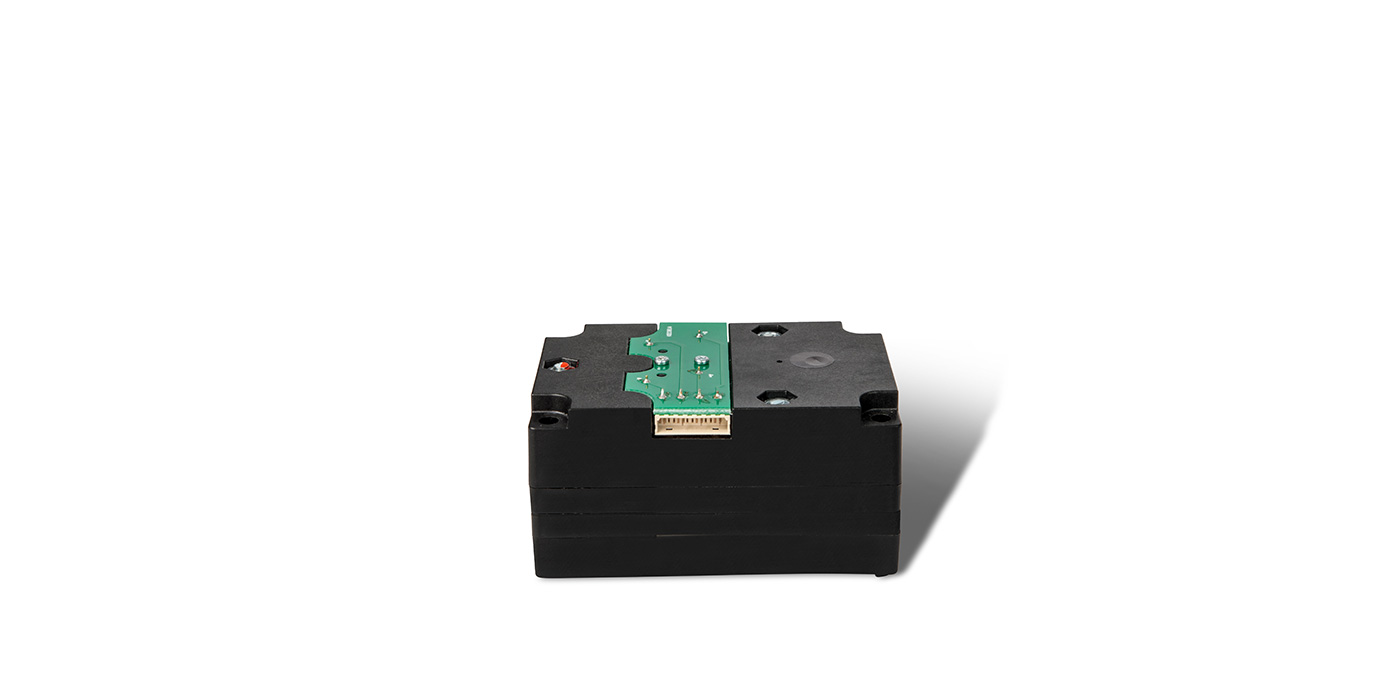

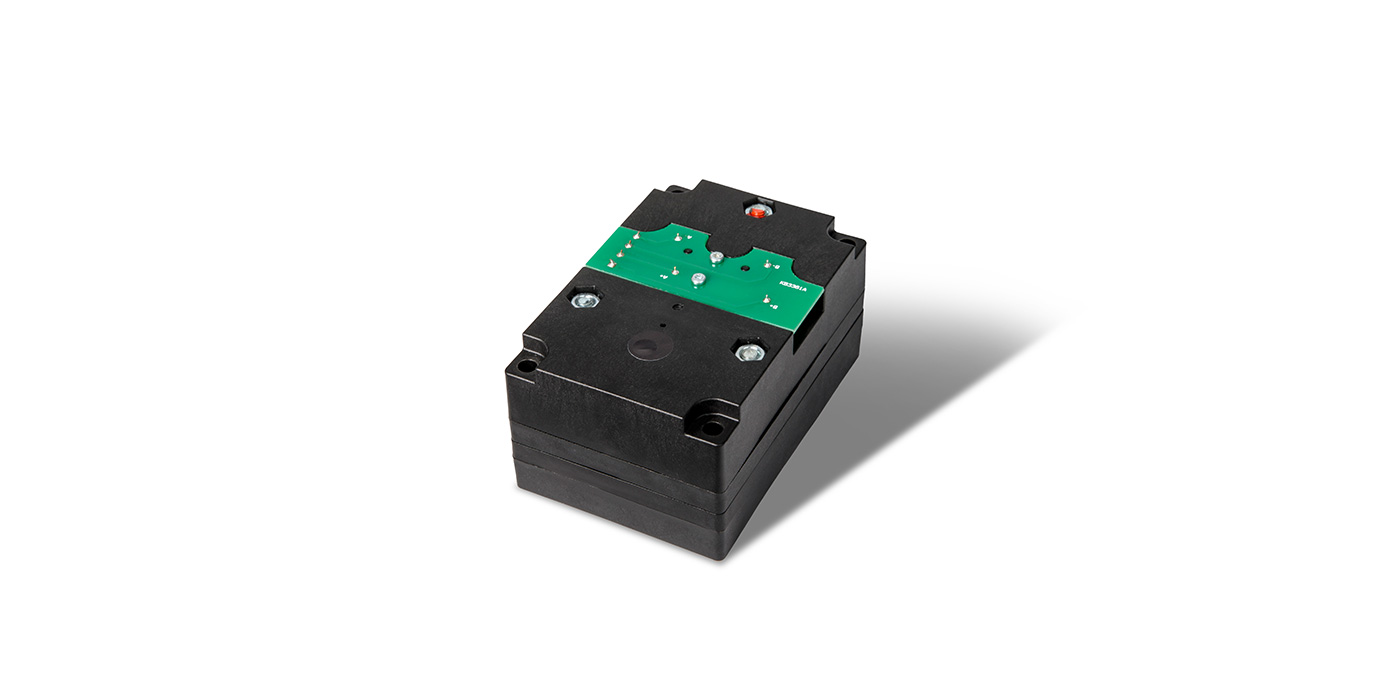

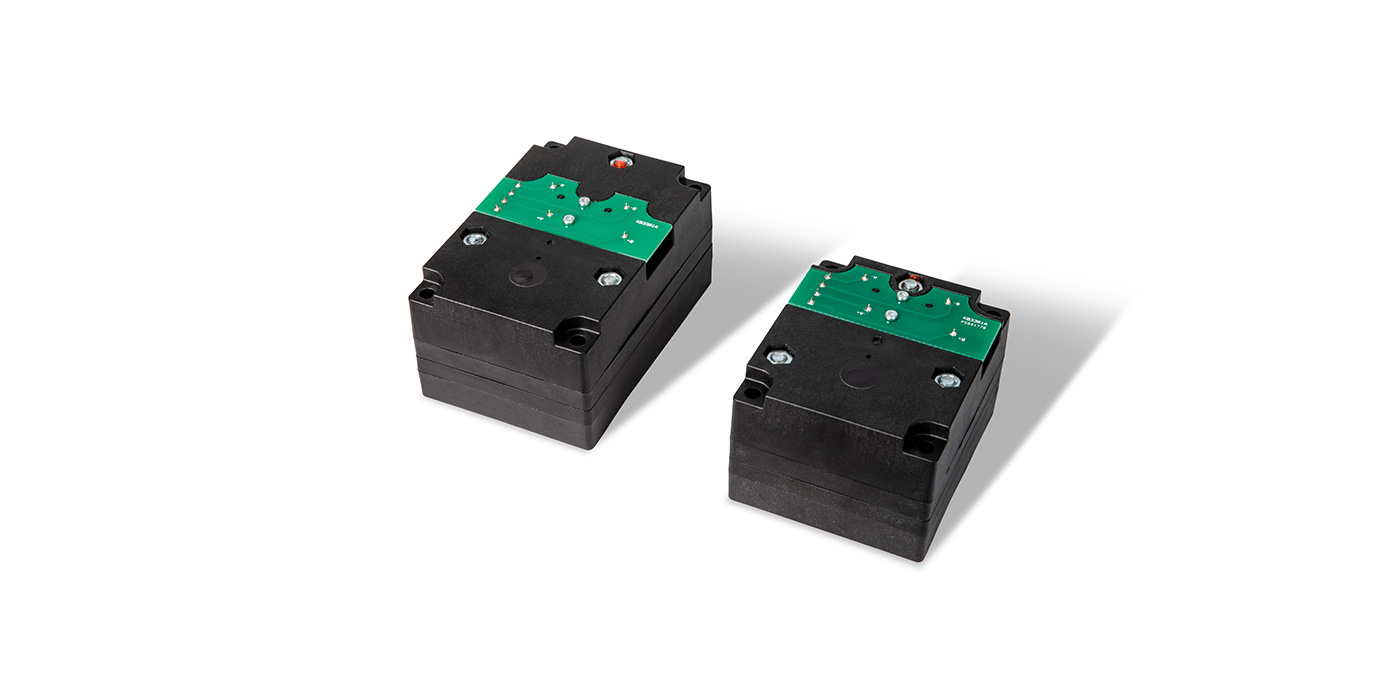

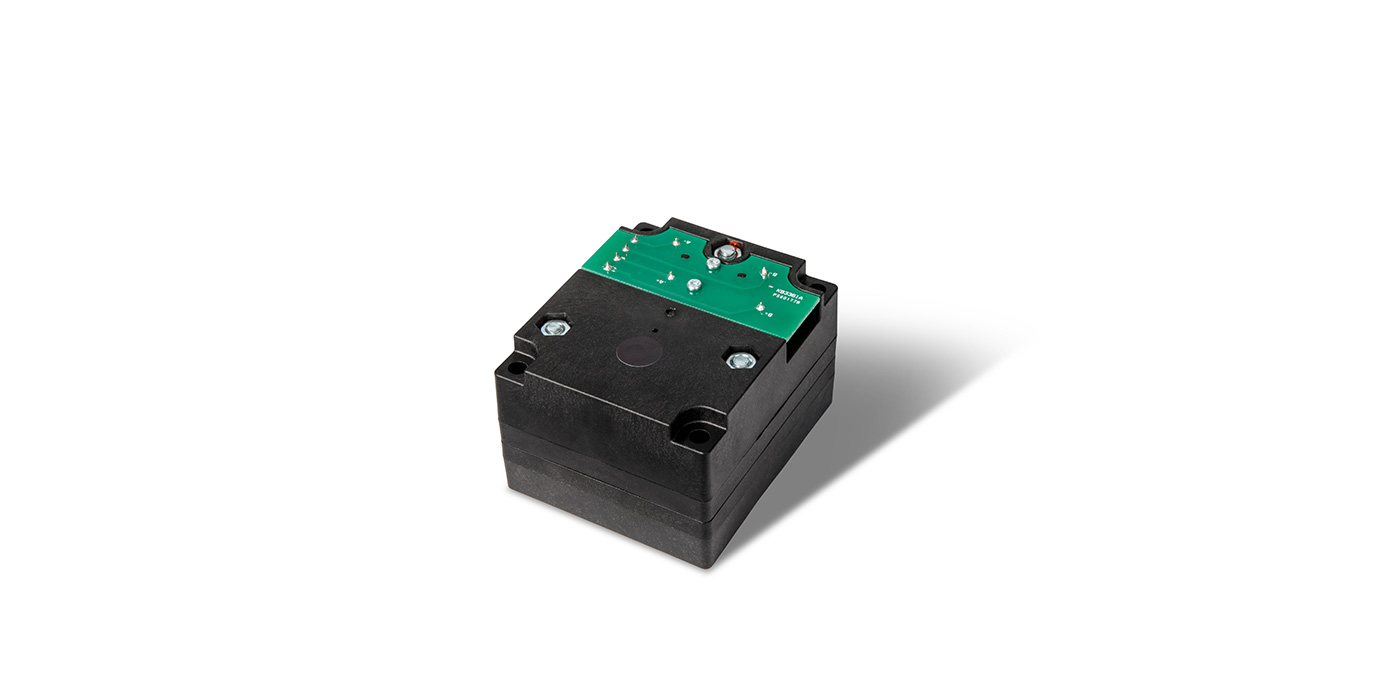

Ready-to-install pneumatic modules for simple use in pneumatic smart valve positioners. HOERBIGER Piezo technology allows most energy efficient and lowest air consumption to realize any electric and pneumatic fail-safe functions. Over the past 20 years more than 1.5 Mio. piezo modules have been installed successfully.
- Size Single Acting:
- 55 x 65 x 42 mm
- Size Double Acting
- 55 x 81 x 42 mm
- Temperature:
- –25… +80 °C (–40 °C optional)
- Weight Single Acting:
- 0,145 kg
- Weight Double Acting:
- 0,170 kg
- Certifications:
- suitable for intrinsically safe applications according IECEx
